Table Top Universal Testing Machine

Product Details:

Send Enquiry
Standards
Extensometer
Specifications & Accessesories
Software Features
Test methods
  • Tensile Test
  • Compression Test
  • Bend Test
  • Single Shear
  • Double Shear
  • Proof Test [Stress Vs %Strain (If Extensometer is used)]
Test load
  • 24-1200
  • 30-1500
  • 40-2000
Standards
  • BS-1610:Part1:1992
  • IS-1828:Part1:1991

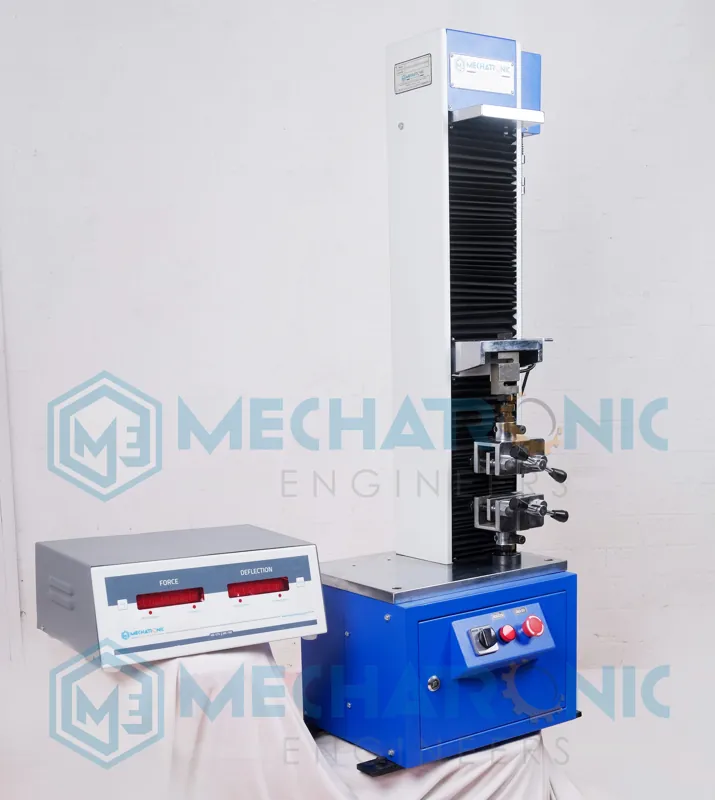

MECHATRONIC ENGINEERS make TABLE TOP Motorized Tensile / Universal Testing Machines are Electronic Screw Driven Machines which are manufactured using precision Two Screw and Two Column Construction with Variable Speed Drive.

These are high precision high performance Universal Testing Machines, having maximum force capacity up to 200 kN. With the help of advanced Software and advanced Digital Control System Machine’s Real Time Test Data (Force (Load), Deflection & Extension} is processed with Excellent Performance, Reliability, Flexibility and Easy Operation

These Machines are suitable for studying Mechanical behavior, Physical Properties of various materials like all types of Metals, Fabric, Ceramics, Rubbers, Plastics, Special Composites, all types of Cables & Wires. In various Industries for QA / QC Lab this Machine is a vital requirement

We are offering Three Types of Models

  • Model: ME-TNE-SD: Ball Screw with Servo Motor Servo Drive

  • Model: ME-TNE-DD: Acme Threaded Screw with AC Motor Drive

  • Model ME-TNE: Single Screw with Induction Motor

The machines confirm to IS, BS & ASTM standards

ME-TNE-SDME-TNE-DDME-TNE

  • Servo Drive with Servo Drive

  •

    Ball Screw Driven

  •

    Single Ball Screws, 2 Columns

  •

    Variable Speed 0.01 -250 mm/min || 0.5 – 500 mm/min || As Per Requirement

  •

    Speed Ratio (1:1000)

  • AC Motor with VFD

  •

    Acme Screw Driven

  •

    1 Acme Screws, 2 Columns

  •

    Variable Speed 10 -250 mm/min

  • Induction Motor

  •

    Screw Driven

  •

    Single Screw, 2 Columns

  •

    Single Speed

Technical Specifications & Standard Accessories

Model: ME-TNE-SD: Double Ball Screw with Servo Motor Servo Drive

ModelME-TNE-SD 500N-TME-TNE-SD 1000N-TME-TNE-SD 2500N-TME-TNE-SD 5000N-T
Maximum Capacity500 N (0.5 kN)1000 N (1 kN)2500 N (2.5 kN)5000 N (5 kN)
Power Supply230V AC / 50 Hz Single Phase
Load MeasurementUsing Strain Gauge Type Load Cells
Measuring Range & Accuracy±1% of indicated load from 2% to 100% of Load Capacity
Maximum Crosshead Stroke600 mm without Load Cell & Grips
Test Speed0.01 to 250 mm/min || 0.5 to 500 mm/min || As per Requirement
Standard AccessoriesWedge Type Grips for Round & Flat Specimen, Compression Plates & Tool Kit

Model: ME-TNE-DD: Acme Threaded Double Screw with AC Motor Drive

ModelME-TNE-SD 500N-TME-TNE-SD 1000N-TME-TNE-SD 2500N-TME-TNE-SD 5000N-T
Maximum Capacity500 N (0.5 kN)1000 N (1 kN)2500 N (2.5 kN)5000 N (5 kN)
Power Supply230V AC / 50 Hz Single Phase
Load MeasurementUsing Strain Gauge Type Load Cells
Measuring Range & Accuracy±1% of indicated load from 2% to 100% of Load Capacity
Maximum Crosshead Stroke600 mm without Load Cell & Grips
Test Speed10 to 250 mm/min || 5 to 100 mm/min || As per Requirement
Standard AccessoriesWedge Type Grips for Round & Flat Specimen, Compression Plates & Tool Kit
Optional Accessories
  • Digital Extensometer Model ME-EE-2
  • Digital Long Travel Extensometer Model ME-LT- 600
  • Vice Type Grips
  • Bending Fixture
  • Special Grips as per requirement
  • Shear Test Attachment
  • Additional Load Cells (50N, 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN, 100kN. any other load cell as per requirement.)
  • Customized Software as per requirement

Extensometer

MECHATRONIC ENGINEERS’ digital extensometer Model ME-EE-2

Strain Gauge type digital extensometer to measure material’ extension while conduction Tensile Test with a resolution of a one micron (0.001 mm).  It is designed to be clamped directly on test specimen.  This is used to measure strain up to elastic limits to determine important parameters like 0.1% to 1% proof stress and young’s modulus.  ME-EE-2 has two fixed gauge lengths of 25 mm & 50 mm.  Change of gauge length is by means of replacing button knife – edge extender.  ME-EE-2 is manufactured from high strength lightweight aluminum with a durable anodized finish.  The knife – edges are made from oil hardened tool steel to with stand heavy, usage.  It Supports maximum Diameter / Thickness of 40 mm & maximum extension 2 mm suitable for Round, Flat, Pipe & Tor Steel / TMT Steel applications.

MECHATRONIC MECHATRONIC ENGINEERS’ digital Long Travel Extensometer Model ME-LT- 600

Balanced clip – on type extensometer used to measure strain accurately.  In association with Advanced Digital Control Panel, true extension of the sample with 0.01 mm resolution is directly displayed.  The distance between two small clamps attached to the sample can be pre-set to any desired gauge length.  Cords attached to each clamp transmit the movement to two sensors mounted at the top of the extensometer column.  These produce pulses which drive the digital strain display thus detecting strain accurately.  This is suitable for rubber & semi rigid plastics.  Maximum extension is 600 mm & gauge length continuously variable.
