In sectors where performance and safety are non-negotiable—automotive, aerospace, infrastructure, and defense—the materials used must be tested not just for strength, but for toughness. When subjected to sudden forces, will a material bend, break, or absorb the shock?
This is where pendulum impact testing machines become essential. They simulate real-world collisions, drops, or crashes, enabling engineers to measure a material’s ability to withstand sudden impacts. These machines help prevent product failures, ensure regulatory compliance, and optimize material selection.

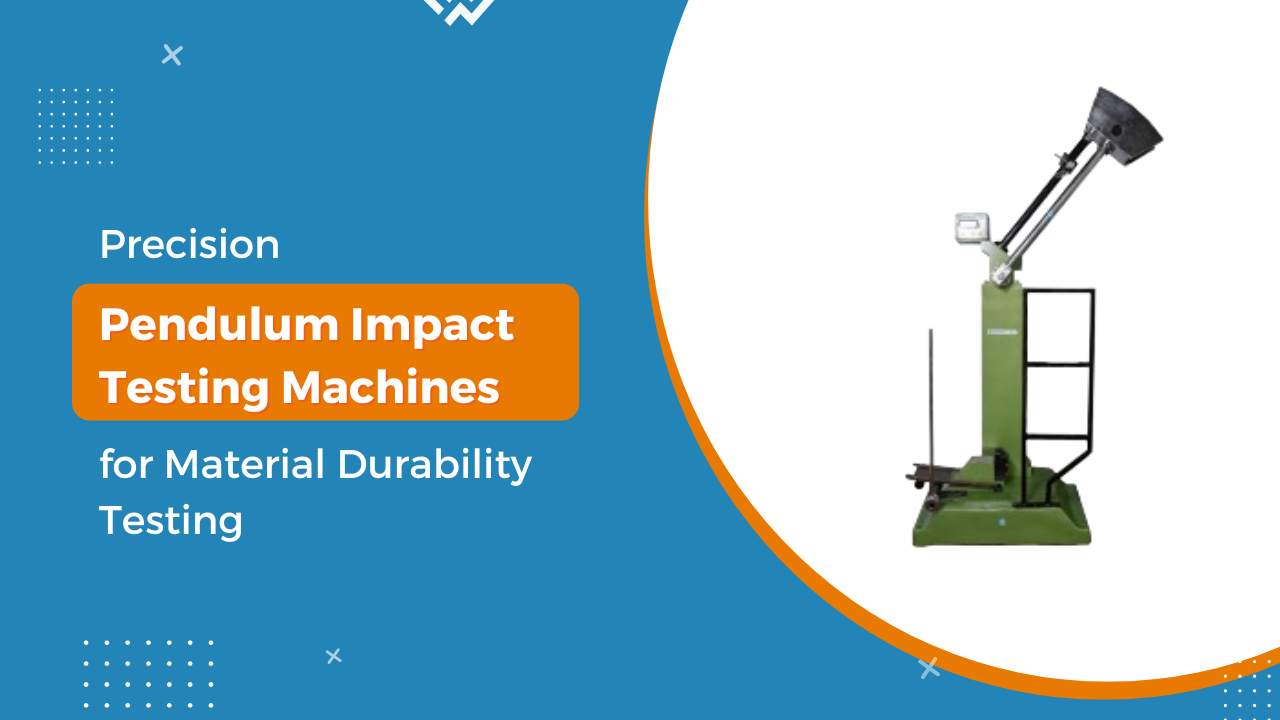

At Mechatronic Engineers, we design high-precision Pendulum Impact Testing Machines that deliver consistent, repeatable, and accurate results across a wide spectrum of materials.
Share on Facebook
Share on X
Share on WhatsApp
Share on LinkedInWhat Is a Pendulum Impact Testing Machine?
A pendulum impact testing machine is a mechanical system designed to evaluate a material’s resistance to impact by measuring the energy absorbed during fracture.
The principle is simple: A notched test specimen is struck by a calibrated swinging pendulum. The amount of energy absorbed by the sample during the break is a direct indicator of its toughness and fracture resistance.
Primary Standards Used:
- ASTM E23 – Standard Test Methods for Notched Bar Impact Testing
- BS : 131 : part 4-1972 – Calibration of pendulum impact testing machines for metals
- BSEN : 10045-2 : 1993 – Charpy impact test on metallic materials – Method for the verification of impact testing machines
How Does a Pendulum Impact Tester Work?
It mimics real-world dynamic loading through controlled impact, capturing data that informs design, manufacturing, and safety decisions.
Here’s a step-by-step breakdown of how the test is performed:
Sample Preparation
A standardized notch (V or U) is machined into the specimen.
Mounting
The sample is positioned on the support (horizontal for Charpy or vertical for Izod).
Pendulum Setup
A weighted pendulum arm is raised to a predefined height.
Release & Impact
The arm is released, striking the specimen at high velocity.
Energy Measurement
The machine calculates energy lost during the swing to determine absorbed impact energy in Joules (J).
This method enables testing of:
- Ductility
- Brittle-to-ductile transition
- Notch sensitivity
- Fracture toughness
Charpy vs. Izod Testing: Which Does a Pendulum Machine Support?
Most pendulum machines can be configured for either:
| Feature | Charpy Test | Izod Test |
|---|---|---|
| Sample Orientation | Horizontal | Vertical |
| Strike Position | Behind the notch | Above the notch |
| Use Cases | Metals, structural components | Plastics, composites, polymers |
| Standards | ASTM E23, ISO 148-1 | ASTM D256 |
Mechatronic’s machines can be adapted with fixtures and tooling to support both Charpy and Izod testing protocols.
Why Is Pendulum Impact Testing Crucial in Modern Engineering?
Because brittle failure under dynamic stress can be catastrophic—impact testing data enables better, safer designs.
Key Features of Mechatronic Engineers’ Pendulum Impact Testers
We’ve engineered our machines for long-term reliability, operator safety, and precision control.
Motorized Pendulum Lifting
Eliminates strain and fatigue during repetitive tests, especially in high-throughput labs.
Magnetic Brake System
Stops the pendulum swing post-impact using electromagnetic braking—ensures accurate data capture.
High-Capacity Models
Machines available in 300J, 450J, 500J, 600J, and up to 750J for advanced materials and aerospace-grade metals.
User-Friendly Controls
Touchscreen interface with programmable test sequences, result logging, and user access controls.
Built-in Safety Systems
- Acrylic transparent shields
- Interlocked doors
- Emergency stop switches
Digital Readouts and Data Logging
Supports integration with ERP or LIMS systems for complete traceability and compliance.
Standardized Compliance
Each machine ships with:
- Calibration certificates
- Reference test blocks
- ASTM/ISO/IS conformity report
Use Cases by Industry
Automotive & Transportation
Test shock absorbers, chassis beams, and crash structures to ensure energy absorption and occupant protection.
Construction & Infrastructure
Validate steel bars and composite panels used in bridges, towers, and tunnels for impact resistance under heavy or seismic loads.
Aerospace & Defense
Analyze high-performance materials like titanium alloys and carbon composites for aircraft frames, drones, or armored vehicles.
Research & Development
Fracture mechanics studies, material design, and validation of recycled or hybrid materials.
Energy & Utilities
Testing turbine blades, power grid components, and cable insulation under mechanical shocks.
Manual vs. Digital Pendulum Impact Testers
| Feature | Manual Model | Digital Model |
|---|---|---|
| Pendulum Lift | Manual crank | Motorized |
| Energy Display | Analog dial | Touchscreen digital |
| Data Logging | Not available | USB/LAN export, real-time capture |
| Safety Interlocks | Basic | Advanced (door locks, sensors) |
| Throughput | Low to medium | Medium to high |
| Best For | Academic, low-volume labs | Industrial QA, R&D, compliance labs |
Customization Options
At Mechatronic Engineers, we recognize that no two test labs are the same. That’s why we offer:
- Custom energy range configurations
- Dual-mode Charpy-Izod fixtures
- Robotic sample feed and ejection systems
- Temperature control chambers (cold/heat)
- Extended arms for larger specimen sizes
- ISO 17025 calibration packages
Frequently Asked Questions (FAQs)
Standard samples are 10mm x 10mm x 55mm (for metals) with V-notch or U-notch, per ASTM E23. Custom sizes can be accommodated with tooling changes.
Yes. Our machines can be configured with interchangeable fixtures and supports for dual-mode testing. It simplifies validation for labs testing diverse materials.
Yes. We offer virtual or on-site training, including operation, safety protocols, calibration procedures, and routine maintenance guidance.
We recommend quarterly internal validation with reference specimens, and annual third-party calibration per ISO 17025.
Yes. All machines comply with CE safety norms, and relevant ASTM/ISO/IS standards. Certification documents are provided with every unit.
Testing with Confidence, Delivering with Precision
Material toughness is a non-negotiable parameter in today’s high-performance engineering landscape. Whether you’re designing a safety-critical auto component or a next-gen aircraft structure, your materials must be able to withstand sudden impact—and your testing equipment must deliver results you can trust.
With Mechatronic Engineers’ Pendulum Impact Testing Machines, you’re not just investing in a test system. You’re ensuring:
- Reliable and repeatable test results
- Compliance with ASTM, ISO, and IS standards
- Safety for operators and sample integrity
- Seamless digital traceability
- Reduced downtime and high throughput
Our machines are already in use at automotive OEMs, aerospace labs, government R&D institutes, and leading universities.
Equip your lab with precision impact testing – inquire about our Pendulum Impact Testing Machines. Let’s ensure your materials perform when it matters most.
